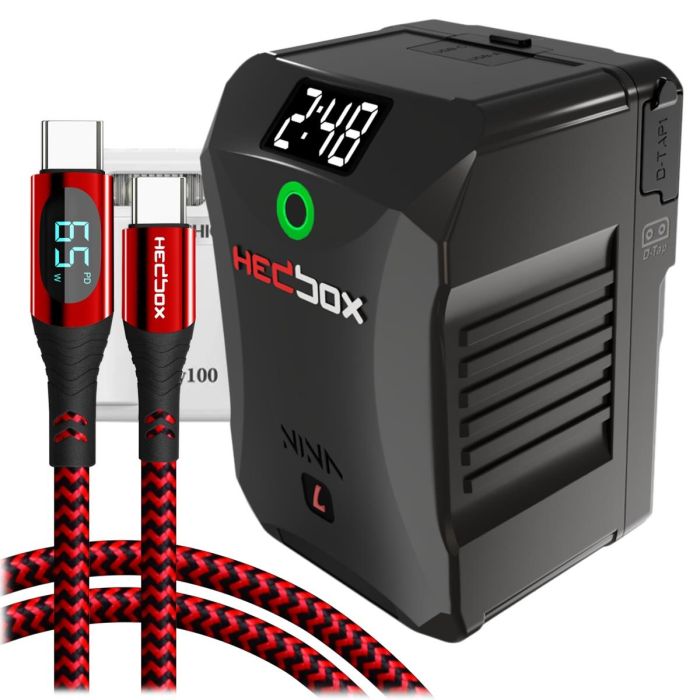

Hedbox NINA L Mini V-Mount Smart Battery (150 Wh)

SMART Mini V-Mount Battery 150 Wh LCA Low Capacity ALARM OLED Display with IDR System 2x D-tap & USB-A and USB-C Out
The NINA series by Hedbox introduces a compact mini Smart Battery Pack with high performance and safety design. A notable feature is the LCA Low Capacity Smart Alarm, alerting users when the battery is below 20% capacity. The IDR Identificational Display Ring provides control and shows battery status. The high-contrast OLED Display offers clear visibility of Battery Capacity, Remaining Operational Time, Battery Circle usage, and Charging function day and night. With an extra 2xD-Tap DC output, USB-C, and USB-A ports, the NINA can power various accessory devices. Conveniently, the D-Tap and USB-C power input allows the battery to be charged using standard USB or D-tap chargers.

SMART Low Capacity ALARM (LCA)
Hedbox R&D is excited to introduce a groundbreaking innovation to the worldwide video & photo market: a cutting-edge continuous Smart monitoring alarm designed for low battery capacity. With a pending patent, our IDR Emergency ALARM is engineered to activate when the battery capacity level drops below 20%. It triggers a distinctive and easily visible flashing IDR ring in silent mode (no buzzer). This exclusive feature serves as a prompt for users, signalling that the battery has fallen below the 20% capacity threshold. Upon pressing the IDR Button, the user verifies the low capacity, and the OLED Display begins to indicate the current battery status.

Capacity Percentage Display
Upon pressing the IDR button ( Indication Display Ring) The OLED Display shows the battery capacity status in percentage (%).

Remaining Time Display
Upon pressing the IDR button ( Indication Display Ring) The OLED Display shows the battery capacity remaining time in minutes

Total Usage Display
Upon pressing the IDR button ( Indication Display Ring) The OLED Display shows the total usage of the battery lifetime. The usage is counted per circle (one circle is total of 10Ah energy supplied)

Charging Display
In battery charging process, regardless of the power input source. The OLED Display shows the charging process of the battery. The charging readout is shown as an indication and a percentage.

V – Mount Connection Holder
NINA L has a standard V-Mount connection. The V-Wedge is made from a special structure of high-quality dur-aluminium. This material enables safe, rugged, and reliable mounting of the battery on all products on which the battery will be used.

Battery Charging OLED Display
Throughout the battery charging process, regardless of the power input source, the OLED display on the battery provides a real-time depiction of the charging progress. The charging indication progress visibly displays the current state of the battery capacity status, which is measured per one percent (1%).

Additional Power Outs USB-C, USB-A and 2x D-Tap
By integrating additional connections on both sides of the battery, the NINA M battery incorporates a D-Tap DC Power output. This feature enables the battery to deliver dual power outputs of 16.8V, 135W/8A each. Additionally, it includes an extra USB-A port with power outputs of 5V/3A, 9V/2A, and 12V/2A. Furthermore, a USB-C port is capable of supporting 5V/3A, 9V/3A, 12V/3A, 15V/3A, and 20V/3.25A (65W). Both USB outputs are compatible with various charging protocols such as PD3.0/QC2.0/QC3.0/PPS/AFC/FCP/SCP/DCP-1.5A/APPLE-2.4A.
This versatile configuration enables users to power other accessories using a single battery.
