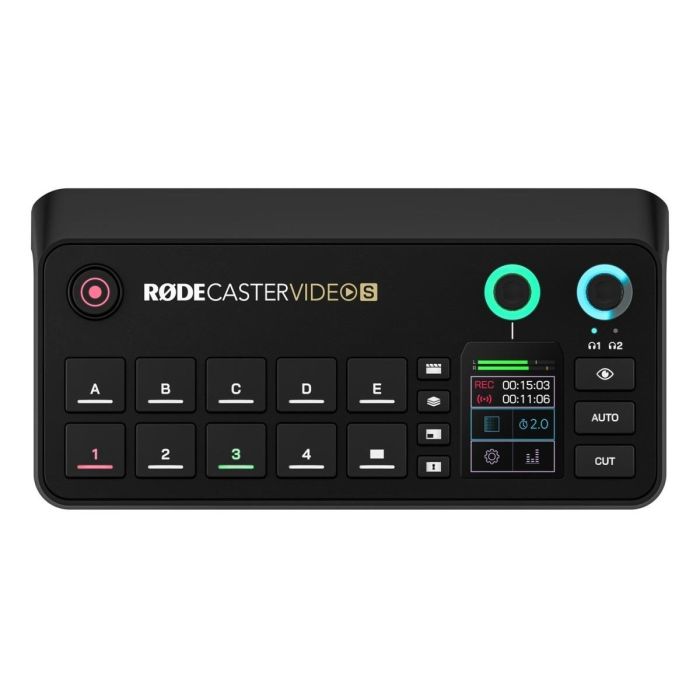

Rode Rodecaster Video S

Key Features
Intelligent auto-switching offers hands-free video transitions
All-in-one console provides video and audio control
High-performance processor delivers smooth broadcast-quality results
Revolution Preamps capture pristine professional sound
Dual wireless receivers connect Rode microphones instantly

Complete production control in one console
The RodeCaster Video S brings all essential production tools together in one streamlined unit. It switches between up to four video sources and five customisable scenes, making it easy to combine camera feeds, graphics and media clips. Scene transitions, overlays and keying are managed directly from the control surface, helping users create smooth, professional results without external software or complex wiring.

With advanced controls and seamless connectivity, the RodeCaster Video S is ideal for podcasting and live broadcasts. Perfect for podcasters, gamers and content creation; the Video S provides all the tools you need to streamline your workflow and instantly transition between scenes and video sources.

Professional audio with signature processing
Audio performance is handled by Rode’s renowned technology. The two Neutrik combo jacks use Revolution Preamps for clean gain and ultra-low noise. Built-in APHEX processing enhances any voice or instrument with EQ, compression and signature Aural Exciter and Big Bottom effects. These tools produce a balanced, polished sound ready for broadcast or recording straight from the console, no post-processing required.

Flexible connectivity for modern creators
Connectivity is designed for versatility. Three HDMI inputs handle HD cameras, while USB-C ports allow connections to computers, SSDs or external devices for direct recording and playback.

Dual internal wireless receivers pair instantly with Rode Series IV microphones, reducing cables and keeping the workspace tidy. Network camera support through NDI and dual-computer linking provide extra flexibility for live or studio setups.

Streamlined workflow and intuitive control
The bright touchscreen interface offers quick access to scenes, transitions and audio settings. Intelligent auto-switching changes video sources automatically based on active audio inputs, allowing hands-free operation during live sessions.

Streaming can be done directly to major platforms using Wi-Fi or Ethernet, while isolated recordings can be saved to an external drive for detailed post-production. Built in Sydney, the RodeCaster Video S delivers a compact, professional solution that simplifies complex video and audio production for any creator.

Features
All-in-one desktop console for video and audio production with intuitive controls
Combines video switching, recording, and professional audio mixing in a compact form
Handles up to four video sources and five customizable scenes with ease
Powered by a high-performance octa-core processor for seamless operation
Includes three HDMI inputs (1080p), one HDMI output, and a multi-use USB-C port for webcam and audio device connectivity
Equipped with two studio-grade Neutrik combo jacks featuring ultra-low noise, high-gain preamps for clean audio capture
Built-in APHEX audio processing suite with EQ, compression, noise gating, filtering, and signature vocal enhancement tools
Front panel access to media playback, scene transitions, overlays, and advanced keying options
Supports up to four NDI network camera inputs and PTZ control via Ethernet, plus dual-camera streaming through Rode Capture for iOS
Features a 2-inch high-resolution touchscreen and multifunction dial for easy settings adjustment
Allows external SSD recording via USB or direct video output to computer through UVC
Offers advanced configuration, media management, audio mixing, and remote control through the RodeCaster App
Audio-based intelligent auto-switching for hands-free scene and source changes
Dual USB-C audio interfaces enable simultaneous connection to two devices
Integrated dual wireless receivers support Rode Series IV microphones without extra hardware
Supports direct streaming to major platforms via Wi-Fi or Ethernet, with ISO recording for full editing control
Engineered and manufactured in Rode’s high-tech facility in Sydney, Australia

Specifications
Video
Video Input Feeds: 4 Simultaneous
HDMI Inputs: 3 Type-A (HDMI 1.4b)
USB (UVC) Inputs: 1 Multi-Function USB-C For UVC Video
HDMI Outputs: 1 Configurable – Preview, Program, Multiview, Inputs 1 - 4
Video Input Frame Rates: 1920x1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; 1920x1080i: 25, 29.97, 30 (HDMI Only)
Video Output Frame Rates: 1920x1080p: 24, 25, 30, 50, 60
Video Streaming Standards: 1920x1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
Video Engine Colour Space / Bit Depth: 4:4:4 RGB / 8-Bit
HDMI Input Colour Space / Bit Depth: 4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV / 8, 10, 12-Bit
USB Input Colour Space: 4:2:2 YUV, 4:2:0 YUV (NV12)
HDMI Output Colour Space / Bit Depth: 4:4:4 RGB, 4:4:4 YUV / 8-Bit
USB Output Colour Space / Bit Depth: 4:2:2 YUV / 8-Bit
Format And Frame Rate Converters: On All HDMI And USB Inputs
NDI Protocols: Single TCP, Multicast
NDI Formats: Hx2, Hx3
NDI Video Codecs: H.264, HEVC/H.265, 4:2:0, 8-Bit
NDI Audio Codecs: AAC-LC, L-PCM Stereo 2.0 At 48kHz
NDI Interfaces: Wired Ethernet

Switching
Total Number Of Layers: 9 Simultaneous In Preview And Program
Downstream Keyers: 2 (Overlays And Logo)
Chroma Keyers: 2 (Green And Blue)
Luma Keyer: 1
Media Players: 2 Simultaneous
Transitions: SMPTE Wipes, Dip And Fade
True Preview: Display Complete Scenes And Overlays Simultaneously In Preview And Program
Generated Borders: All Scenes
Multiview: Program And Preview, Live Inputs, Scene And Media Thumbnails, Audio Mixer And Channel Status, Recording, Network And Storage Status, Run Time, Date And Time Information
Media Player: 24GB On-Board Storage
Supported Formats: Videos: MP4, Images: PNG, JPG, Audio: WAV
Bluetooth: 5.3 (For Stereo Audio Input Or Phone Calls)

Audio
Analog Audio Inputs: 2 Combo Jacks (Microphone, Line Or Instrument) With Revolution Preamps™
Wireless Audio Inputs: 2 Series IV Wireless Receivers
Digital Audio Inputs: USB 1: 2-In/2-Out Or Multichannel (20-In) Output; USB 1 Chat: 2-In/2-Out With Mix-Minus; USB 2: 2-In/2-Out With MFi Support; USB 4: Compatible With RØDE USB Microphones And RØDECaster Pro II And Duo
Analog Audio Outputs: 2 Headphone Outputs (1/4-Inch)
Audio Processing: APHEX® VoxLab™ Processing Per Channel, Advanced APHEX® Granular Processing: Compressor, Equaliser (EQ), De-Esser, Panning, Noise Gate, High-Pass Filter, Aural Exciter™, Big Bottom™
Preamps: Frequency Range: 20Hz – 20kHz, Input Gain: Up To 76dB
Equivalent Input Noise: -131.5dBV (A-Weighted)
Streaming Sample Rate / Bit Depth: 48kHz / 32-Bit
Recording Sample Rate / Bit Depth: 48kHz / 24-Bit
Audio Mixer: 18 Possible Audio Sources (9 Stereo Channels Simultaneously)
Custom Routing Outputs: 11 Outputs With Independent Configuration: Live Mix, Headphone 1, Headphone 2, Recording, USB 1 Chat, USB 1, USB 2, USB 4, Bluetooth, HDMI A, Network

Streaming, Recording And Software
Direct Streaming: Real Time Messaging Protocol (RTMP/RTMPS) Over Ethernet Or Wi-Fi
Supported Platforms: Youtube Live, Twitch Live, Facebook Live, Twitter/X Live, Custom Server
Network: Ethernet (10/100/1000 BaseT) And Wi-Fi 6 (2.4 And 5GHz)
Companion Software: RØDECaster App
Software Features: Scene Builder, Auto-Switching, Audio Mixer, Stream Profiles, Device Configuration
Storage Media: External USB Mass Storage Device (exFAT Format) For Recordings
Video Recording: Program Feed As H.264/AVC MP4 File With Embedded AAC Stereo Mix
Isolated (ISO) Video Recording: 4 Video Inputs And 1 Program Feed As Independent H.264/AVC Files (Up To 1080p30)
Audio Recording: Stereo Mix WAV Audio File
Multitrack Audio Recording: 9 Independent Stereo WAV Audio Files
Compatible Operating Systems: macOS 11 Or Later, Windows 10 Version 1803 Or Later, Windows 11

Power And Mechanical
Power Supply Requirements: USB-C PD 45W, 20V 2.25A
Weight: 875 Grams
Dimensions: Length: 253.5 Mm, Width: 128.4 Mm, Height: 60.2 Mm
Product Code: RCVS
