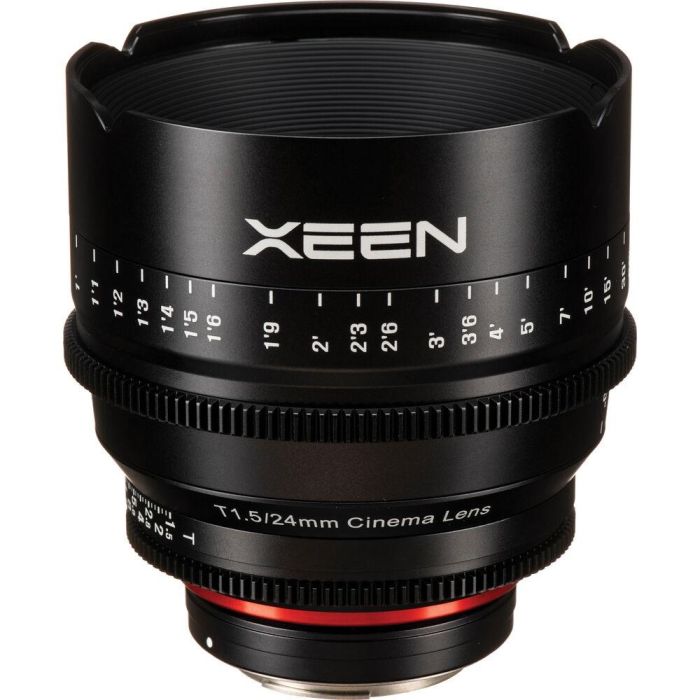

Rokinon Xeen 24mm T1.5 Pro Cinema Lens for Canon EF Mount

Rokinon's Xeen 24mm T1.5 Lens for Canon EF Mount is built specifically for use as a cinema lens. It features an internal focus design so that the lens does not change size while focusing, this minimizes the appearance of breathing when changing focus. Each lens in the set is multi-coated for good contrast, glare prevention, and are color matched to a factory standard, allowing you to assemble a set over time with minimal color shift. This 24mm lens provides what is considered a wide angle of view on full-frame cameras, and a tighter angle of view on smaller formats.

The lens features dual sided focus scales marked in feet, with dual sided iris scales. The 11-bladed iris provides a rounded aperture for a natural looking highlights and Bokeh. The lens is a manual focus and iris lens, and does not have auto focus or auto iris capability. It incorporates cinema-style focus and iris gears that share the same position across the lenses in the Xeen set. The common 114mm front diameter allows for quick lens changes when using a matte box and focus accessories. The focus ring rotates 200° from close focus to infinity; this gives you a high degree of precision when adjusting focus.

This is a 24mm lens that has an image circle that covers a full-frame sensor. When mounted on a camera with a full-frame sensor it provides you with a wide angle of view.
The lens features metal construction to withstand the rigors of daily production, and comes with a support foot that can help take strain off your camera's lens port.

Dual right and left side focus and T-stop scales allow your focus puller to work from either side of the lens, without having to flip the lens in the mount, or facing upside numerals.

Each lens in the XEEN series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.

The common 114mm front diameter allows for quick lens changes as you don't have to swap out anti-reflection donuts or adapters to use the same matte box.

The non-rotating front allows you to use optional clip-on matte boxes.

"Clickless" aperture ring for smooth iris pulls.

A minimum focusing distance of 10" allows you to get up close to your subject.

Specifications:
Focal Length
24mm
Lens Mount
Canon EF
Lens Format Coverage
Full Frame
Maximum Aperture
T1.5
Minimum Aperture
T22
Diagonal Angle of View
Super35: 61.2°
Full Frame: 84.1°
Minimum Focus Distance
From Unspecified Point in Lens: 10" / 25 cm
Optical Design
13 Elements in 12 Groups
Diaphragm Blades
11
Gear Standard
Focus: 0.8 MOD
Front Diameter
114 mm
Focus Rotation
200°
Iris Rotation
40°
Image Stabilization
No
Dimensions (W x H)
4.63 x 4.63" / 117.6 x 117.6 mm
Length
4.8" / 121.7 mm
Weight
41.6 oz / 1.2 kg
Packaging Info
Package Weight
4.5 lb
Box Dimensions (LxWxH)
10.3 x 7.8 x 7.8"
