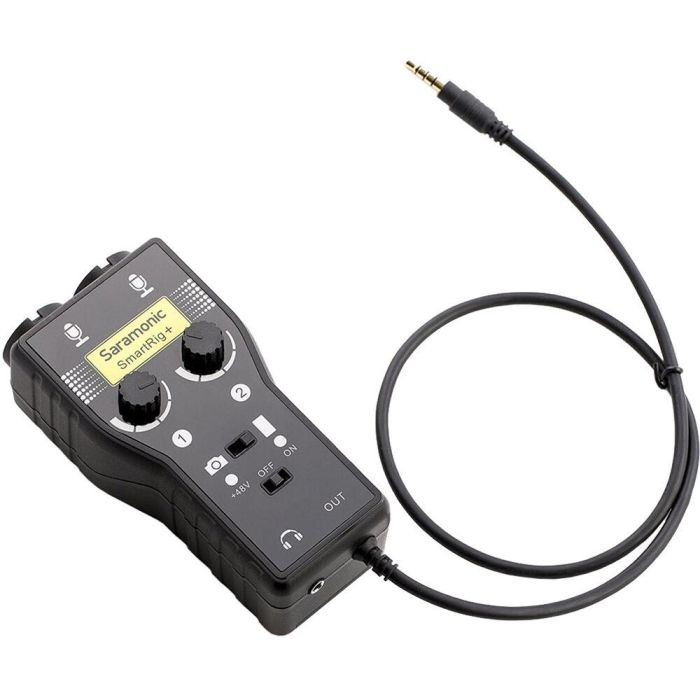

Saramonic SmartRig+ Two-Channel Audio Interface for USB 3.5mm Devices

Saramonic SmartRig+ Mic/Guitar Interface for DSLR Camera, Camcorder, iOS and Android Devices

The Saramonic SmartRig+ is a portable microphone/guitar interface for recording professional quality audio.
The SmartRig+ makes your recording work easier by connecting professional microphones and guitars (or other instruments) to your smartphone, tablet, DSLR camera or video camera. 2 independent channels allow you to connect and control gain on multiple microphones or guitars at the same time. The interface also features 3 types of input to accommodate any set up: two XLR mic inputs, two 1/4" (6.35mm) guitar inputs, and two 1/8" (3.5mm) jack inputs for connecting any instrument or microphone. Outputs to a standard 1.8" 3.5mm cable for use with, smartphones, cameras and other devices.

Provides 48V phantom power for microphones, and includes a 3.5mm headphone output for real-time sound monitoring. The two gain control thumbwheels make it easy to set precise levels.Toggle between Mono and Stereo output modes as necessary. Powered by one 9V battery.

Channels
Two Independent Channels

Inputs
Two XLR Microphone Inputs, Two 3.5mm (TRS) Microphone Inputs, Two 1/4" Guitar Inputs

Outputs
Output switch for smartphone (TRRS) or Camera/Camcorder/Recorder (TRS); 3.5mm Headphone Output Jack for Monitoring

Phantom Power
+48v Phantom Power Switch

Mono/Stereo
Mono/Stereo Toggle Output Switch

Product Specifications

Frequency Response: 20Hz to 20kHz, +/-0.5dB
Distortion: Less than 0.01% @ 1kHz, -30dBu input
Signal to Noise Ratio: 80dB @ 1kHz, -30dBu input
Noise: -98dB full band (with Phantom Power)
Gain: +23dBu
Maximum Output Level: 2Vrms
Phantom Power: 48V
Phantom Max Current: 13mA
Channels: 2
Inputs: 2 x XLR + 1/4" (6.35mm) Combo Jack and 2 x 1.8” (3.5mm) TRS
Selectable Mixer: Mono or Stereo Output via Toggle Switch
Outputs: 1 x Male 1/8” (3.5mm) TRRS Output Cable and 1 x Female 1.8” (3.5 mm) Headphone Jack
Selectable Output: TRS for Camera/Recorder or TRRS for Mobile Devices via Toggle Switch
Battery: 1 x 9-volt (Alkaline or Lithium)
Dimensions: 120 x 40 x 40mm (4.72 x 1.57 x 1.57")
Weight: 130g (4.6 oz.)

In the Box

SmartRig+ Audio Interface
Padded soft carrying case with belt loop
Hook and loop cable tie and mounting strap
